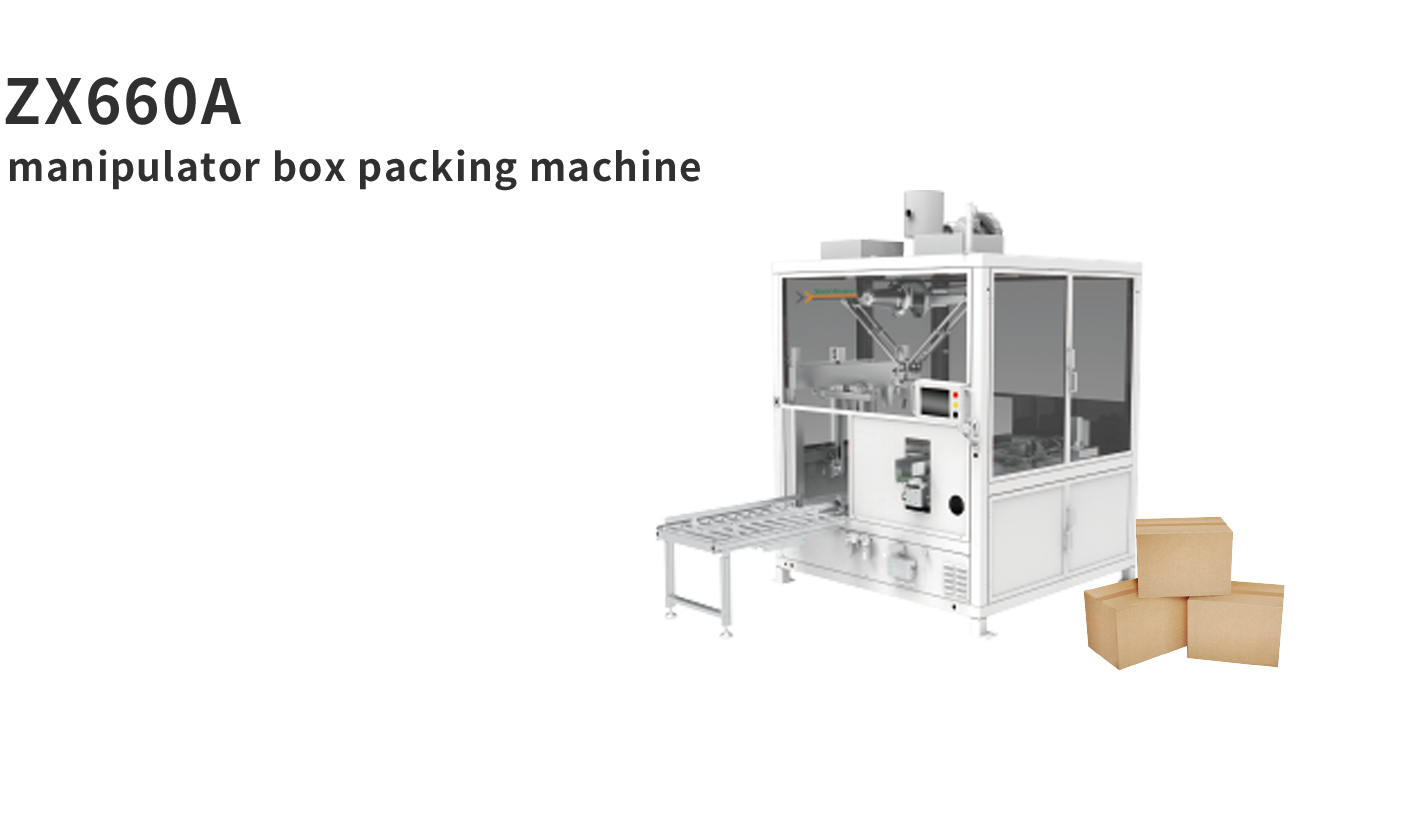

Equipment model：ZX660A

Design packing speed：5-25 boxes/min (depending on the product)

Packing box LxWxH：L:270-550mm (up to 450mm when rotating     W:150-400mm(L+W<900mm)

H:120-400mm(single layer max 200mm,580mm

Adhesive tape：48mm, 70mm width optional

Host size：6900x2200x2800mm (length x width x height, including the material handling line and the opening and sealing machine)

Total power：13.5KW (including the material handling line)

Power supply：380V ± 10%, 50Hz ± 5%, control voltage DC 24V

Air consumption：200L/min (the buyer prepares the air source by himself)

Air source：0.5~0.7Mpa

Weight：About 2000kg (including the material handling line)

The whole machine occupies a small area, the layout is convenient, and the requirements for the site are not high

The whole machine can realize the function of one-key production change, which is more convenient and fast;

The equipment is stable, and each material handling action is physically pushing the material into place,

which is more stable than the traditional belt conveying;

The handling efficiency is high, and a side push manipulator needs 2 or 3 times of grabbing. coordination and coordination;

Support remote debugging of equipment, remote monitoring of data, and data interaction.
