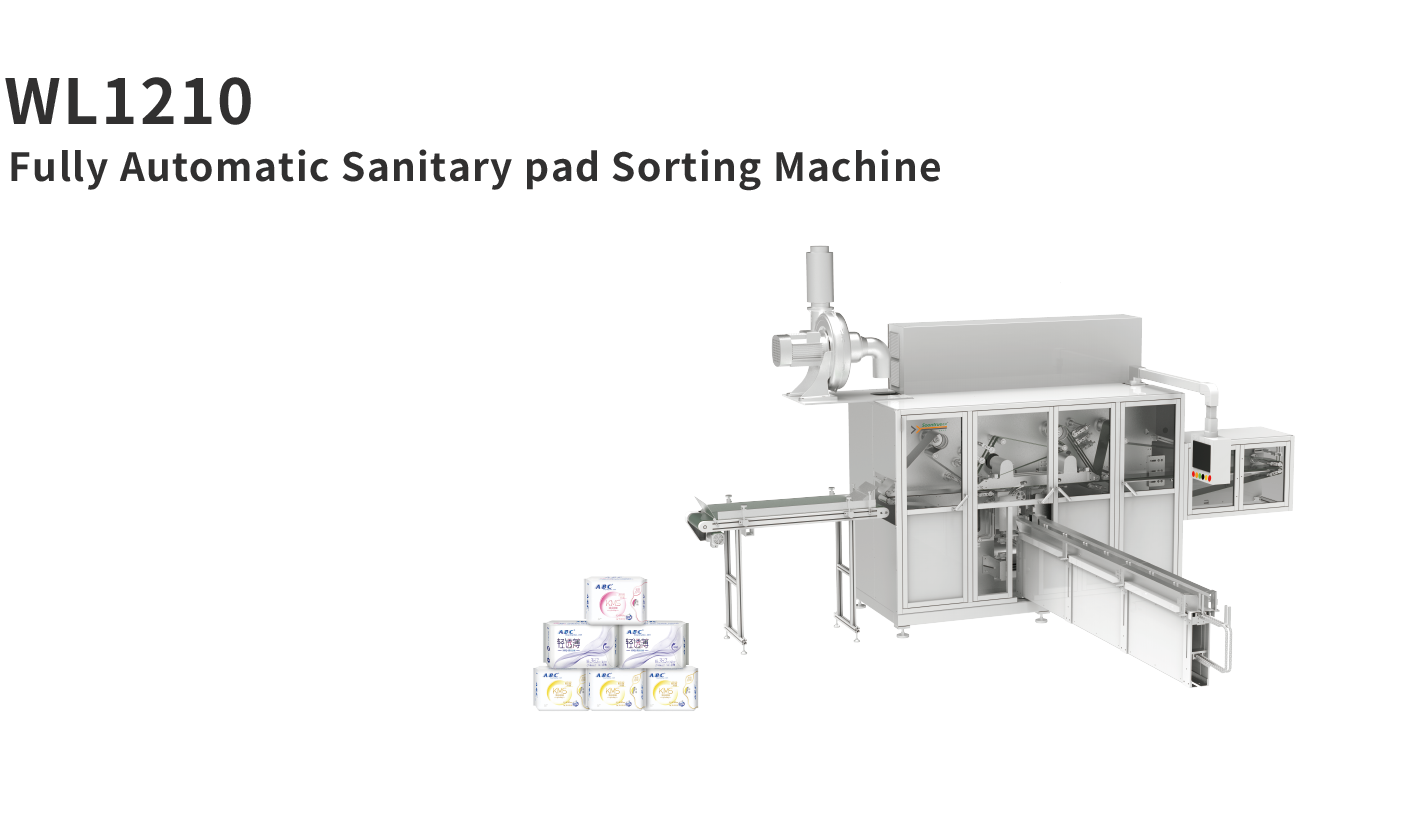

Product Model：WL1210

Sorting Speed ：≤600pieces/min

Packaging Speed：≤60packs/min

Equipment Dimensions (L * W * H)：3560*1150*2350（mm）

Equipment Weight：2500KG

Equipment power：20KW

Power Requirements：4P380V (3-phase 4-wire system)

Air Source Requirements：0.5 - 0.8 MPa (to be provided by the customer)

Equipment Noise：≤75db

The equipment is fully servo-driven, featuring high precision, speed and stability;

Equipped with an extra-large LCD touch screen for display and parameter setting, making it more convenient to change specifications;

According to production capacity requirements, one or multiple packing machine can be freely configured.

The sorting machine can automatically track the line speed of the sanitary pad main machine to achieve synchronous production.

The sorting machine can be automatically connected to the bagging machine and Cartoning machine.

The tail of the sorting machine is connected to the discharging conveyor line.
