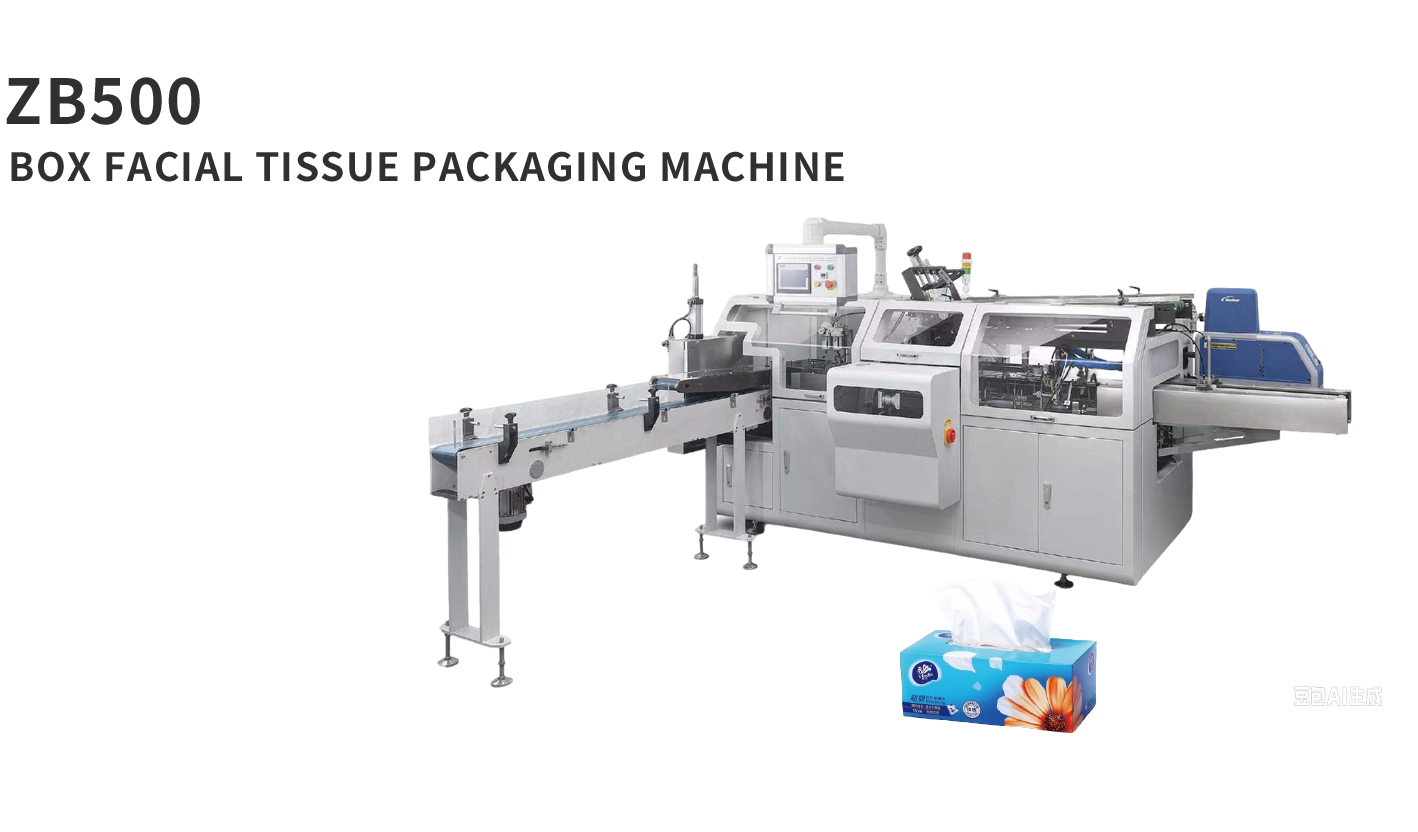

Item/model：ZB-500

Carton paper：300-400g/m³

Packing size：L：100-240mm W：100-120mmH：20-90mm

Packing speed：60-100 boxes/min

Heating power：4KW

Motor power：5.5KW

Total power：10 KW

Power supply：380V   50Hz/60Hz

Machine noise：≤80dB

Air supply：0.5-0.8 Mpa

Air consumption：120-160L/min

Overall dimensions：L：4570mm    W：1700mm   H：1800mm

Machine weight：2500Kg

MAIN TECHNICAL FEATURES:

ZB500 uses the Schneider Brand motion control system;

Max capacity of up to 100 boxes per minute;

High standard security performance;

Compact and reasonable structure,simple operation and adjustment;

Adopting photoelectric eye automatic detection tracking system;

Stop automatically if no boxes or out of leaflets continuous;

Easy to change to different sizes;

Protecting automatically for overloading;

Using the famous America glue machine .
