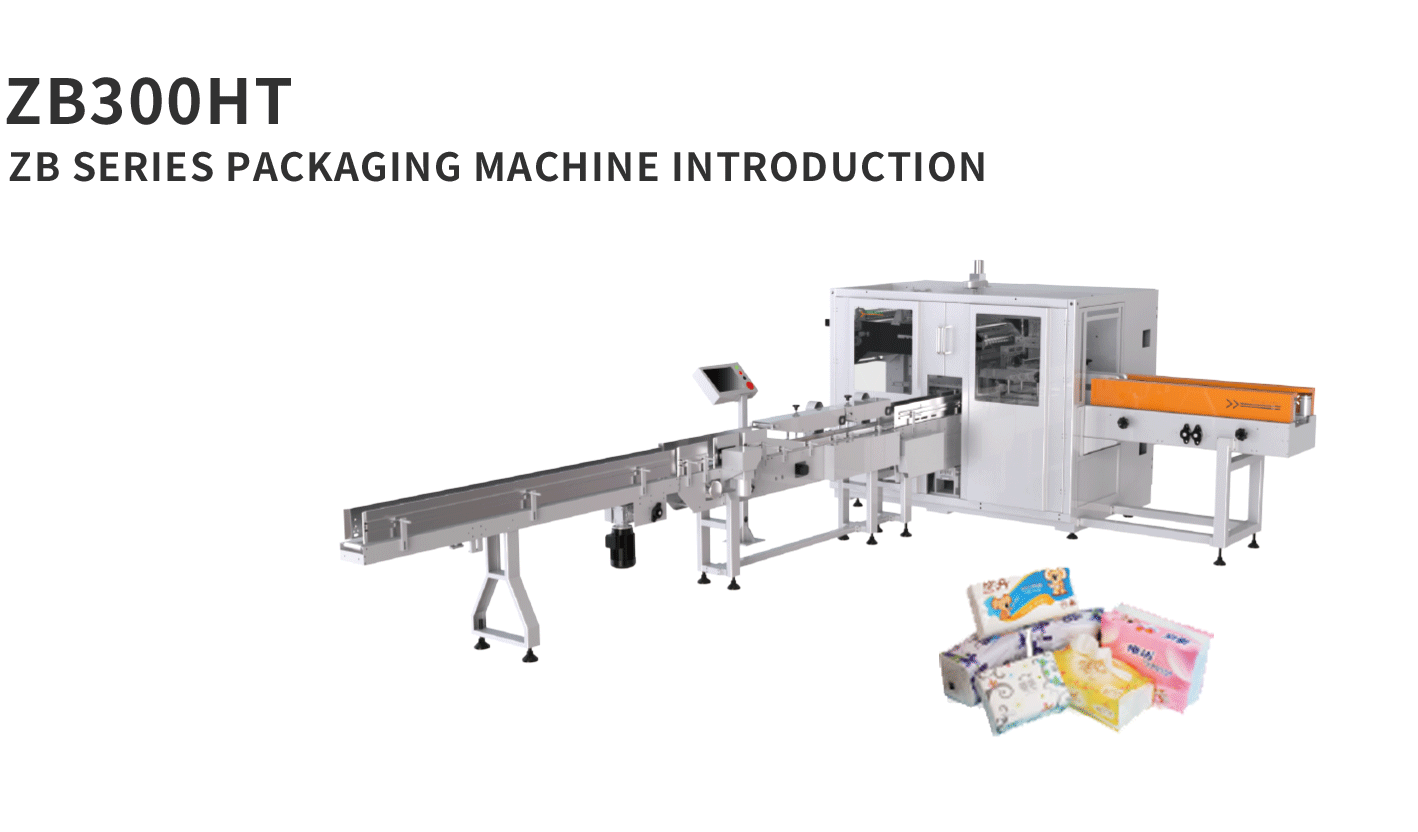

Model：ZB300HT

Packing material：

CPP OPP(Double side heat-sealing film)

Thickness:0.04mm

Max outer diameter:  ￠450mm

Core diameter:  75mm---78mm

Packing size：L：95~220mm   W：80~110mm   H：30~100mm

Max packingsize：L：220mm   W：110mm   H：100mm

Max packing speed：220 Packs / min

Air supply：0.5-0.8MPa

Totalpower：25KW

Power type：380V   50Hz（Transformer available）

Air supply：0.5-0.8Mpa

Overall dimensions：L：6153mm   W：3787mm   H：1761mm

Machine weight：About 3200 KG

Noise：≤80dB

The machine structure is simple, power system and packaging system are new open structure, easy to adjust and maintain;

Compact size, small footprint, easy to layout and operation, The machine structure is firm, vibration is small, packing effect is stable;

The film cutters and dotted line cutters adopt the spring rotary cutter mode, driven by the servo motor, which will not work when there is no material, so as to improve the service life of the cutter;

After turning type pressing package structure, simple adjustment, stable and beautiful packaging effect;
