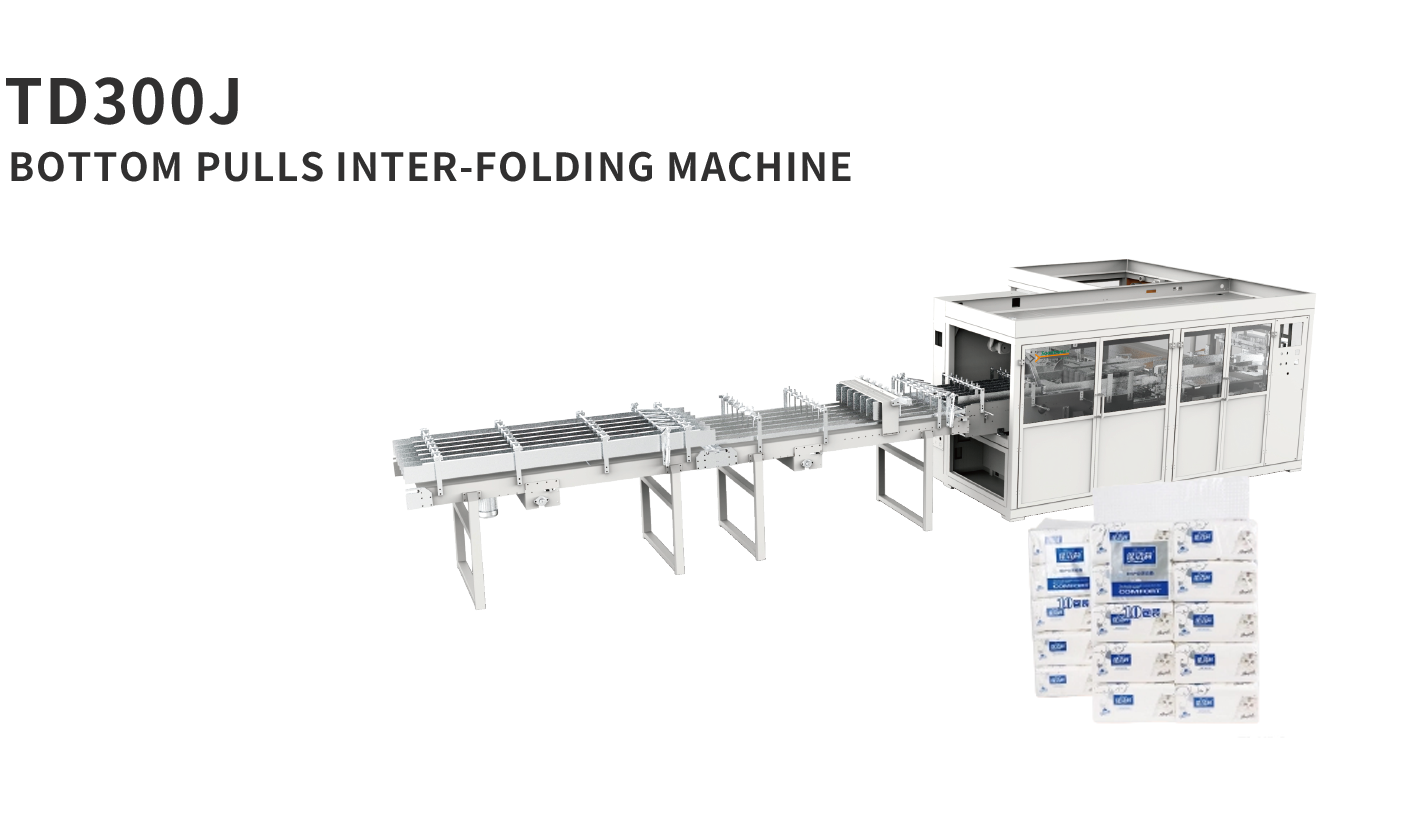

Model：TD300J

Packing size：Max bundle length：450mm,Bundle width range：120~420mm,Bundle height range：90~220mm

Packaging form：Single row 3/4/5/6 packs, double row 6/8/10/12 packs

Bag material：M-shaped PE OPP CPP pre-made bag with exhaust hole

Packing speed：Single layer ≤25 bags/min,Double layer ≤12 bags/min   Three layers ≤5 bags/min

Power supply：380V ± 5%, 50Hz 3 phase 4 wire,all control voltage is DC 24V

Air pressure：About 0.6~0.7Mpa (the demand-er prepares the air source by himself);

Power：Single installed power :23KW Using power :18KW

Safety：Machine adopts CE standard

Bag residue：25-30mm of waste material cut into the waste film box by automatic film absorption

Using motion controller control, using 10 sets of servo power system, high degree of humanization, simple

operation, accurate positioning, more stable operation.
