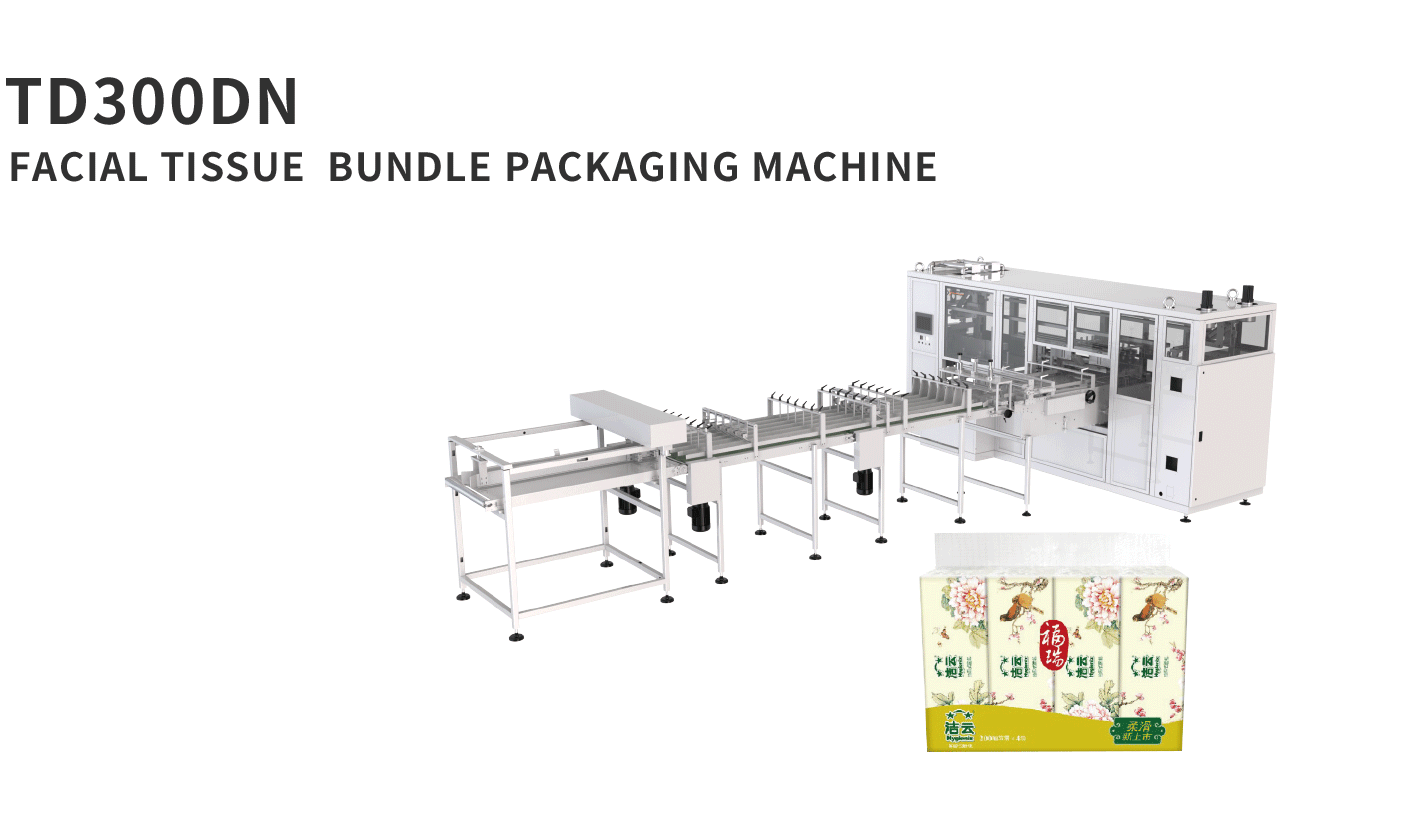

Model：TD300DN

Packaging form：Single layer single row 3-6 pcs, double row 6-12 pcs，Double layers 12-24; Three layers depending on the arrangement

Bag material：M-shaped PE OPP CPP pre-made bag with exhaust hole

Packing speed：≤25 bags / min
Power supply：380V ± 5%, 50Hz 3 phase 4 wire,all control voltage is  DC 24V
Air pressure：About 0.6~0.7Mpa (the demand-er prepares the air source by himself)
Equipment power：Single installed power :15KW    Using power :13KW
Safety：Machine adopts CE standard
Bag residue：25-30mm of waste material cut into the waste film box by automatic film absorption

Using motion controller control, using 10 sets of servo power system, high degree of humanization, simple

operation, accurate positioning, more stable operation;sise anddoublerow productpackaging speccaton, and te design spaceisonvenentormaintenance;

Low energy consumption, the rated power of the whole machine is no more than 15Kw,

the normal productionpower is no more than 13Kw, far lower than the similar products at home and abroad.
