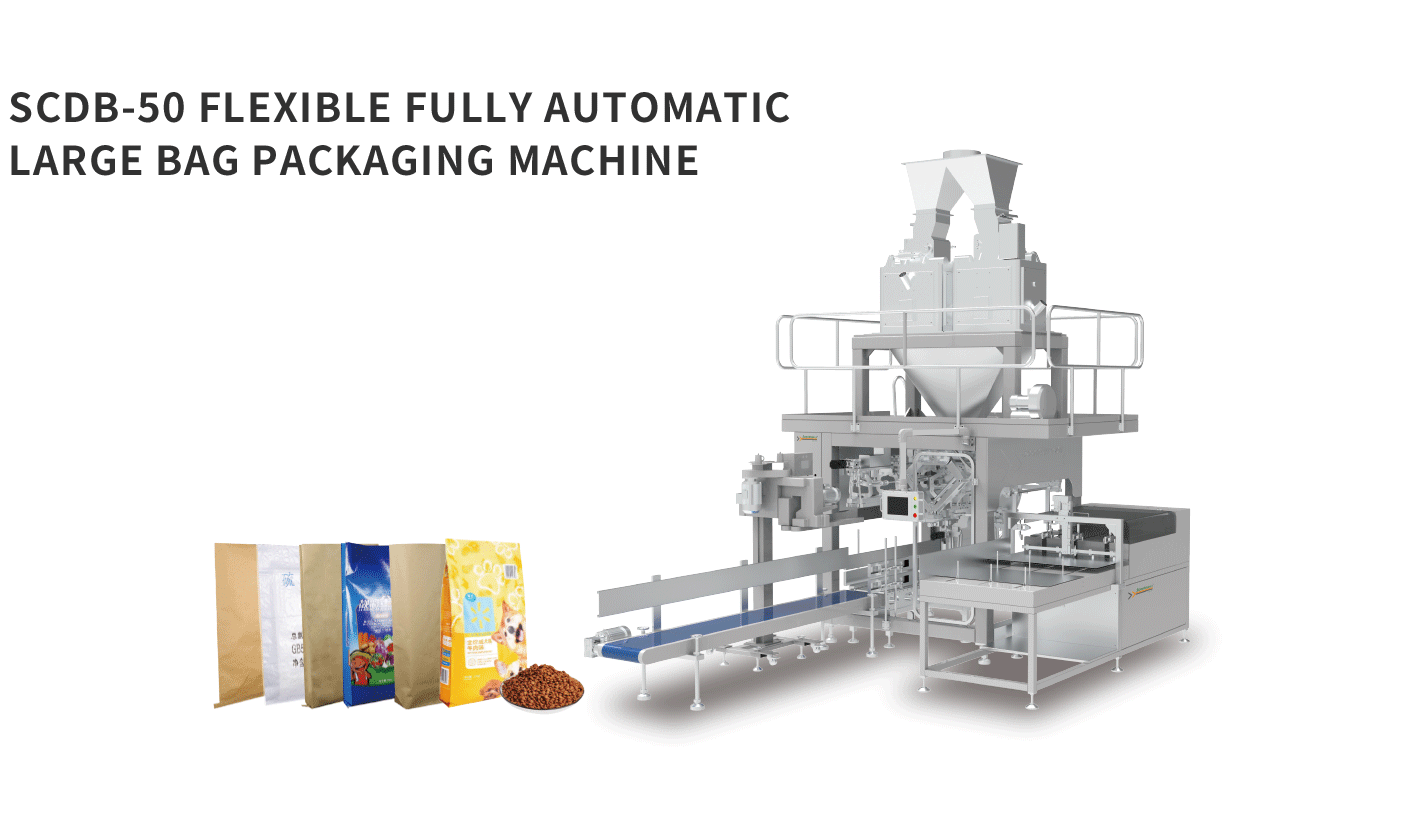

Model: SCDB-50

Maximum packaging size: 600mmx1000mm

Minimum packaging size: 450mm x 650mm

Applicable weight range: 5-50kg

Applicable bag shapes: flat pocket, M-shaped bag, irregular bag, and tube film bag

Applicable bag materials: woven bags, paper, paper plastic, composite bags, heavy-duty plastic bags, aluminum foil bags

Packaging speed: 5-20 packs/minute

Power type: 220V 50Hz

Total power: 15kw

Maximum weighing accuracy: ± 1%

Overall dimensions: 6134mm x 3362mm x 4708mm

Gas consumption: 500-1200ml/min

Gas source:>6kg/cm ²

Interchangeable unit modules: bag storage unit, robotic arm execution fixture, cutting unit, sealing/sewing unit

Salt spreader accuracy: 0.1-2.5mm

Modular design of the entire machine, relying on servo multi axis linkage, suitable for the production of packaging bags with multiple specifications and bag types.

Compared to traditional equipment, it does not require frequent adjustment of mechanical limits, has fast operating speed, and is easy and convenient to operate.

Equipped with a 50kg dual head servo quantitative unit, the maximum production capacity is 40 packs/minute, and the measurement accuracy reaches one thousandth.

The bag storage structure is simple and durable, with servo linear drive and one click switching of bag types; The electronic grating ruler is used to detect the bag opening design, ensuring uniform reference.

The symmetrical biaxial robotic arm and parallel fixture unit achieve core functions such as bag opening, bagging, and bag moving, with strong applicability.

The duckbill unit structure is simple and reliable, with good sealing performance, and can be used for packaging granular and powder materials.

The bag synchronization unit is a fully servo mechanism that enables the transfer of material bags and rapid tapping of the bottom of the bag to prevent stacking. It runs synchronously with the bag clamped by the robotic arm and is linked to multiple axes.
