Equipment model: GT25

Packaging speed: ≤ 2400bags/h

Measurement range: 5-50kg/bag

Measurement accuracy: ± 0.2% (depending on material characteristics)

Bag width: 350-450mm

Bag length: 550-850mm

Roll film material: PE, film thickness 140-200um

Total power supply: AC380V (three-phase four wire TN-S), 10KW (depending on configuration adjustment)

Gas consumption: ≥ 0.6MPa ≤ 3m ³/Min (depending on configuration adjustment)

Environmental requirements: temperature 5-40 ℃, ≤ RH80%

Power: Approximately 10KW

Noise:<80dB

Equipment weight: 3859Kg

Equipment size: 4550 * 1660 * 2834mm

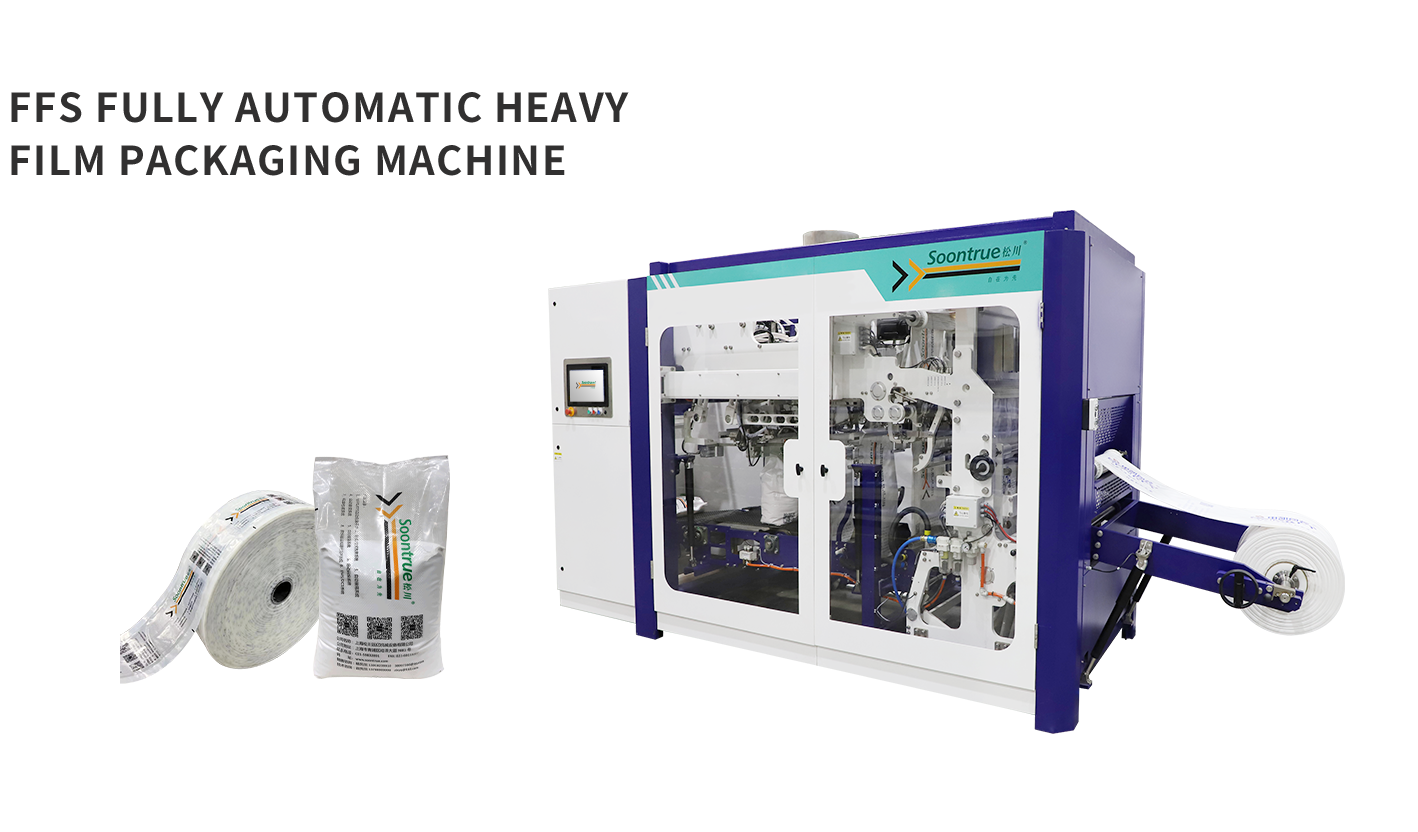

One stop fully automatic FFS packaging solution

Adopting a continuous supply method of large roll film, the packaging machine automatically completes functions such as bag cutting, measuring, filling, and sealing, fully realizing automation and unmanned operation;

Adapt to automated metering and packaging of various particles or materials containing trace amounts of dust, with a wide range of applications and high production capacity;

The unit consists of an automatic weighing and measuring system and a packaging host; The host adopts an integrated modular design, with a compact structure, high degree of automation, and space saving;

According to the requirements, single/double weighing and high/low speed weighing and measuring systems can be selected, using a control system with AI intelligent operation and self-learning, which can automatically adjust and optimize parameters to achieve the best speed and accuracy; At the same time, automatic analysis and calculation can be performed based on the accuracy values feedback from the backend belt type weighing system, and the measurement system parameters can be automatically adjusted;

The sealing and corner sealing adopt the original German imported heating and control system, which has the characteristics of fast speed, beautiful and neat sealing, and good sealing effect;

Standard configuration bag length and height automatic adjustment mechanism to meet the production requirements of different product sizes;

Adopting a multi axis servo system as the executing mechanism, with automatic adjustment and synchronous control, automatic parameter setting, improving equipment stability and facilitating personnel operation and debugging;

Configure a full-color touch screen for interpersonal interaction interface, while providing real-time status monitoring, data collection, fault diagnosis, and assistance functions;

Configure independent vacuum pumps and air storage tank systems to ensure stable negative pressure and improve equipment stability;

Configure remote help function, which can automatically restore parameters, modify programs, expand functions, diagnose and troubleshoot faults with customer authorization;

According to product requirements, configure bag opening heat sealing dust removal and exhaust functions.
