Technical parameters
model：Knife seal setting height 80 / Knife seal setting height 120
packaging speed：30-200 packs/minute / 30-150 packs/minute
Packaging film width：90-400MM
Packaging Specifications：80-350x35-160X5-40 MM / 80-350X35-160X5-70 MM
Total Power：7.8KW
Main motor power：3.5KW
heating power：4.3KW
Net weight of the machine：850KG
Overall dimensions：1980x1010x1395 (nose) 4230x100x1395 (including tailstock) MM
Power type：220V 50Hz
Packaging film material：OPP/CPP, PT/PE, KOP/CPP, VMBOPP, VMCPP, VMPET, etc

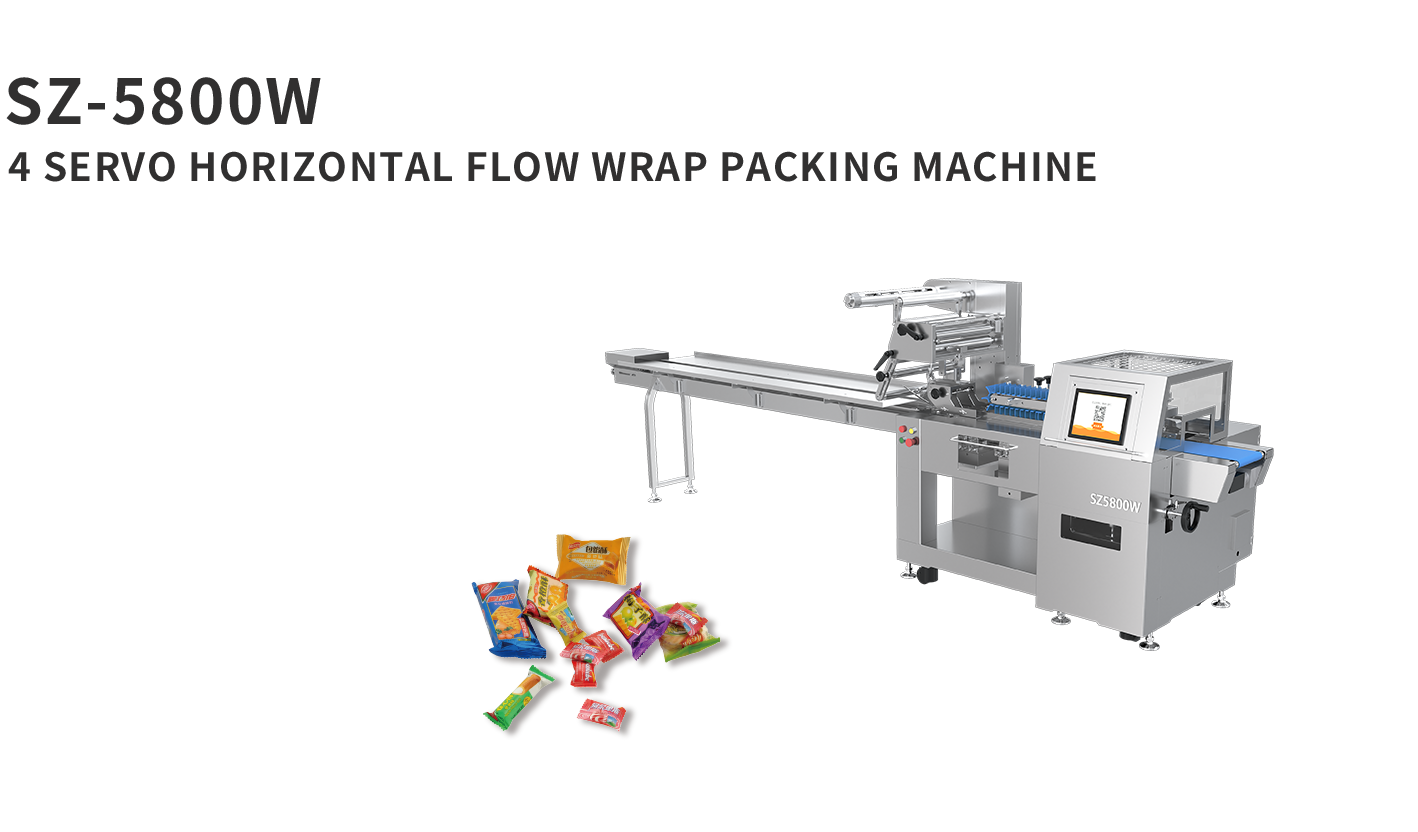

Product overview
Suitable for packaging various solid and regular objects such as baked goods (mooncakes, bread, cookies, etc.),
medical equipment, candies, medicines, daily necessities, hardware parts, paper boxes or trays.
The whole machine is equipped with seven servo systems, which have fast calculation speed and high accuracy.
Each servo control is flexible and stable in operation;
The digital temperature control module is used to control the temperature of the middle and end seals.
The temperature display and adjustment can be operated on the human-machine interface,
and the temperature control is precise;ten inch high-definition touch screen display, clear and concise working status,
easy to operate and train, effectively reducing the learning time of operators;
It can store multiple product parameters and formulas without the need for repeated settings,
and can be downloaded and used immediately;
Automatic adjustment of bag length, film breakage detection, photoelectric detection,
automatic tracking adjustment of bag length, no need for manual setting;
The main components are designed with high strength, wear-resistant surface,
and precision machining technology to ensure long-term stability;
The mechanical mechanism is simple, the debugging is convenient and intuitive,
it is easy to maintain and clean, and the after-sales cost is low;
The whole machine protective cover adopts a safety door design,
and multiple safety protection measures ensure stable production.
