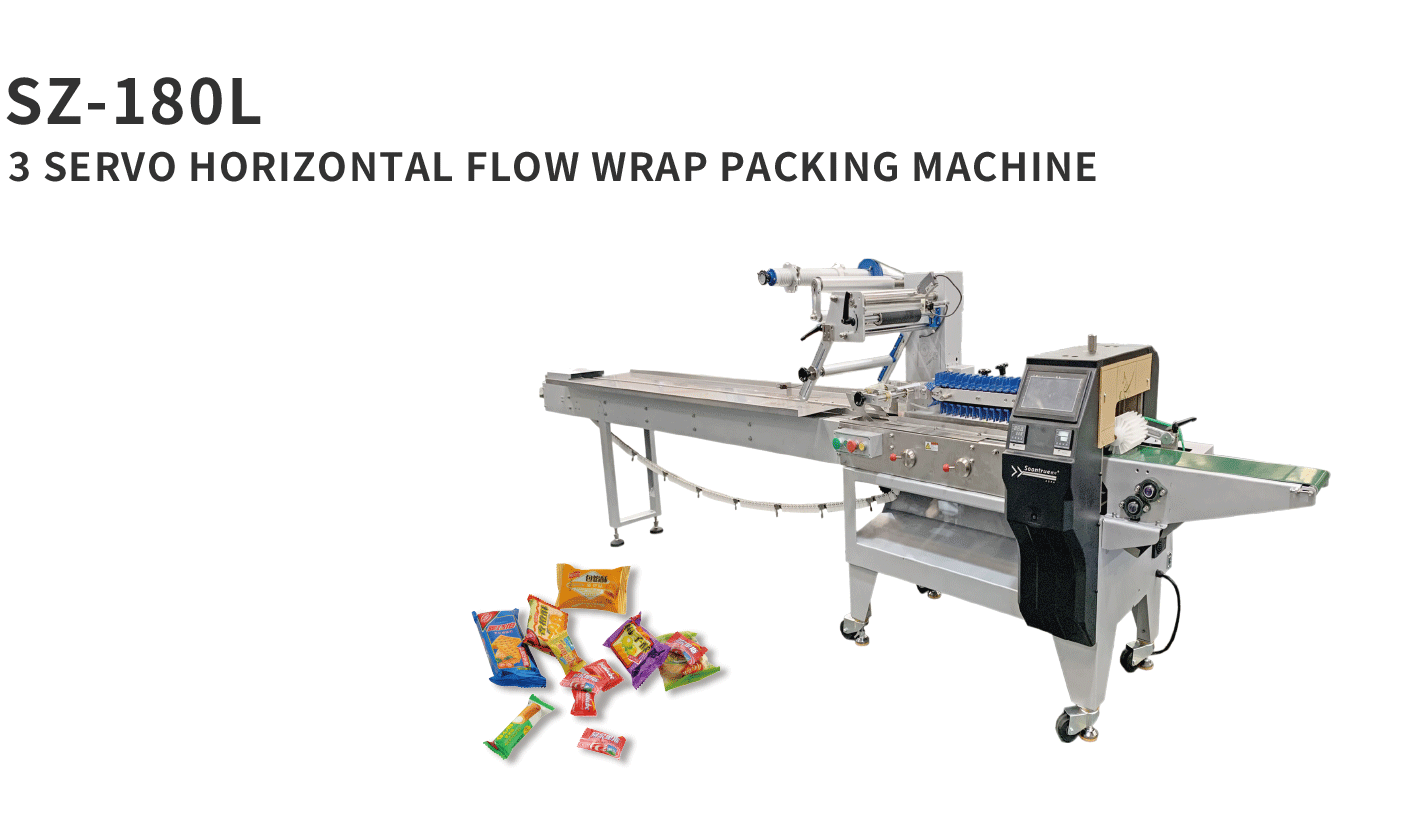

Model：SZ-180L（Single jaw）

Package length：120-500 mm

Package width：35-200 mm

Package height：5-65 mm

Packing speed：30-150 bags/min

Film size：90-400 mm

Packaging film type：OPP/CPP、PT/PE、KOP/CPP、VMBOPP、VMCPP、VMPET等

Type of power supply：220V 50HZ

General power：4.5 Kw

Weight：450 Kg

Dimension ：4200×930×1370 mm

It is suitable for packing large size and weight baked goods such as moon cakes and cakes, or larger size products.

The machine is controlled by three servos;

Conveying under the middle sealing belt, can pass more heavy (≥300g) materials;The sweeping can make the envel;

7-inch touch screen display, easy to operate, clear working state;

Can store a variety of product parameters and formulations, do not need to set repeatedly, download can be used;

Automatically adjust the bag length, without manual setting;

Higher precision, sealing and cutting position is accurate;

The stop position and printing position can be set arbitrarily;

Simple mechanical structure, convenient debugging and intuitive, low after-sales maintenance cost;

The packaging range is expanded to adapt to a variety of product specifications;

In line with the structure of human engineering mechanics, can be convenient to quickly cleaning, maintenance,

overhaul of the machine;

Reduce the labor intensity of the operator, effectively improve production efficiency.
