Center distance: 150/192 mm

Packaging specification length: 120-600 mm

Packaging specification width: 70-200 mm

High packaging specifications: 20-80 mm/70-100 mm

Packaging speed: 25~100 bags/min

Packaging film width: 600 mm (maximum)

Packaging film types: OPP/CPP, PT/PE, KOP/CPP, VMBOPP, VMCPP, VMPET, etc

Power type: 220V 50HZ

Total power: 7.6 Kw

Whole machine weight: 1000 Kg

Body size: 5130x1430x1480 mm

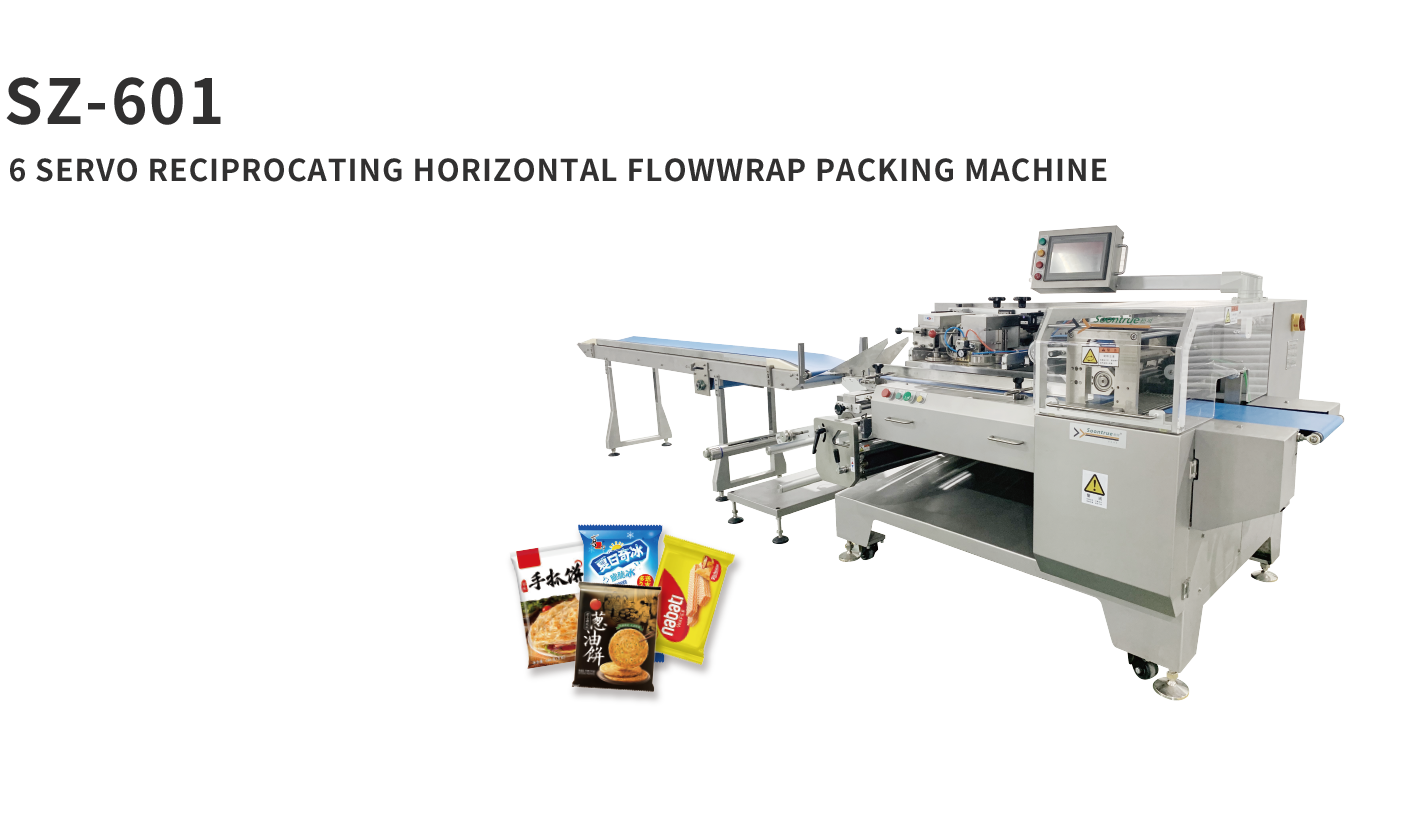

Suitable for packaging larger sized non palletized hand-held pancakes, flatbreads, and various irregular and soft objects.

The whole machine is controlled by eight servos;

The packaging range of the whole machine is very large, suitable for packaging various large-sized and large-sized products;

Ten inch touch screen display, easy to operate, clear and distinct working status;

It can store multiple product parameters and formulas without the need for repeated settings, and can be downloaded and used immediately;

Automatically adjust bag length without manual setting;

Higher precision, accurate sealing and cutting position;

The parking position and printing position can be set arbitrarily;

The mechanical structure is simple, the debugging is convenient and intuitive, and the after-sales maintenance cost is low.
