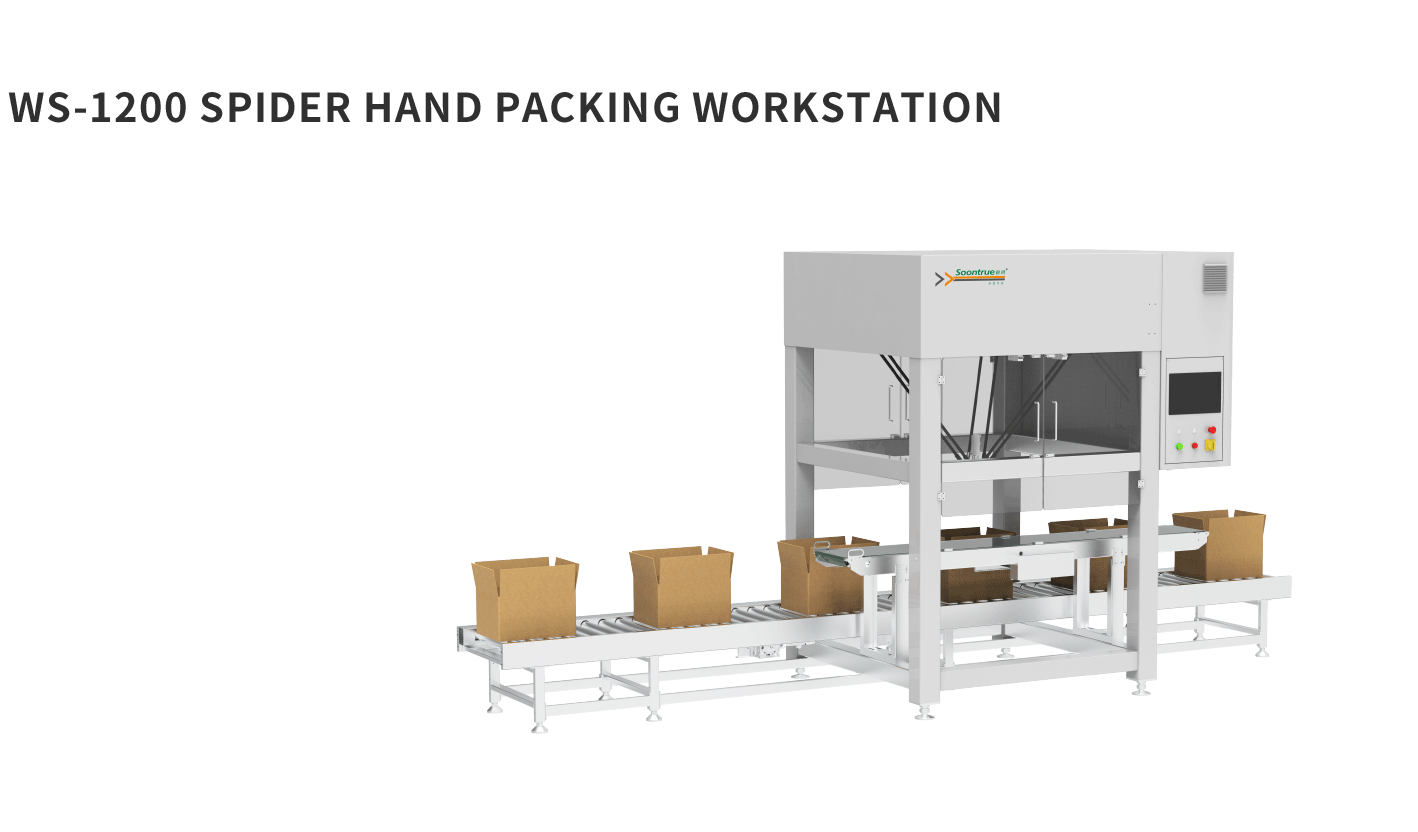

Model: WS-1200

Robot load: 5KG

Robot working diameter: 1200mm

Packing speed: ≤ 80pcs/min

Compatible products: bagged/boxed/canned/other regular items

Compatible with maximum carton size: L ≤ 600mm, W ≤ 500mm, H ≤ 350mm

Equipment dimensions: L2800mm * W1504mm * H2450mm

Equipment Material: Carbon Steel Spray Coating, Silver Grey/SUS304 (Optional)

Equipment weight: approximately 1500KG

Power supply requirements: 220V ± 10%, 50Hz ± 5%

Gas supply requirements: reference gas consumption, 750-1000L/min

Communication protocol: Modbus

IP rating: IP54

Temperature range: 0-50 ° C

Noise:<80dB

It can achieve one click switching and free definition of single grab, double grab, multiple grab, and any grab placement form, and supports both Chinese and English languages

The robot's repeated positioning accuracy is within ± 0.1mm, and it is equipped with high-performance vision, supporting multiple recognition functions. Even in the case of poor imaging, advanced functions can be used to achieve accurate material recognition, ensuring the precision of the machine's grasping position

Multi layer software and hardware protection such as robot workspace over limit alarm, safety door protection, and packet drop abnormal alarm make the workstation safer and more stable

In addition to being applied in the packing and sorting process, it can also be used as an independent teaching pendant without a standard workstation, which can be used by university laboratories and system learning robots

On average, the investment cost can be recovered within 6-12 months, and the special grabbing function for special materials can be designed with free algorithm functions
