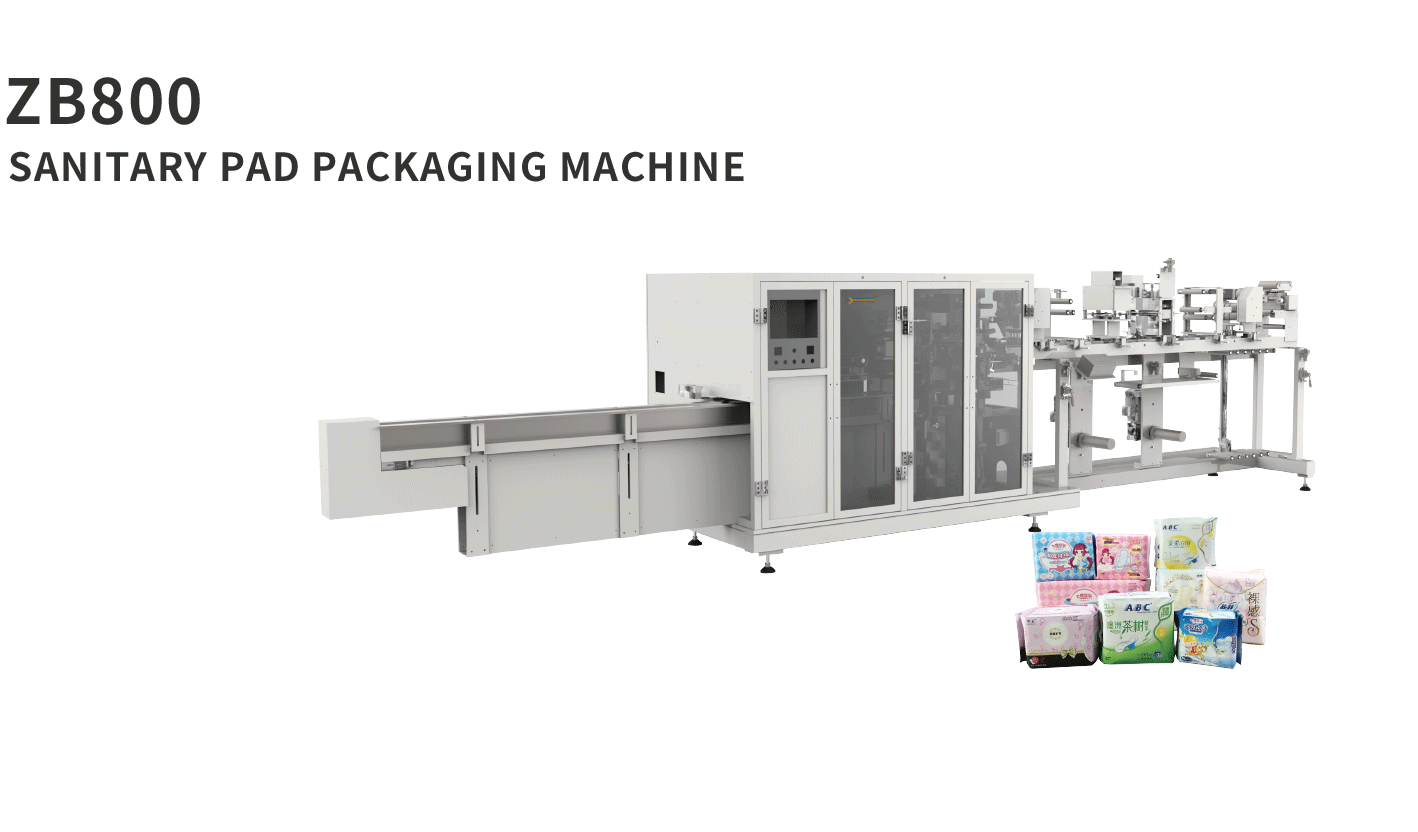

Model：ZB800

Packaging film：0.04mm-0.10mmPE Double-sided heat sealing film

Packing speed：45-60 Packs/min(Depending on the product characteristics）

Motor power：11KW

Main heating power：3.0KW

Specifications：

L：100mm -200mm

W：65mm -100mm

H：20mm -100mm

Machine weight：3000KG

Pass rate：≥97%

Overall dimensions：L：7400mm    W：1000mm    H：2200mm

Power type：3phase 4wire , 380V 50Hz, control voltage DC24V

Compressed air：6kg/cm²   0.45m³/min

Noise：≤75dB

The machine is with 10 axis Mitisusbi J4 series servo for fast react and precisely control.

The control system is with Mitisubshi Q type PLC, motive CPU with J4 high-resolution servo for high speed and stable operation.

Big HMI with LED display makes the operation and parameter changing very convenient.

The full-auto arranging in-feeder can accelerate and decelerate according to the more and less of the products coming for better cooperating with the upstream machine.

The machine is with Omron high-end heating tube system to control the temperature error within 1℃.During high speed operation, this system can insure each bags be made perfectly. The end sealing is controlled by Ropex from Germany, which the heating wires can heat and cool down immediately and no need to change the heating wires and heating tapes for long period.

The machine can detect the product, no product, no bag-taking, and will turn off the fan automatically if long time no product.
