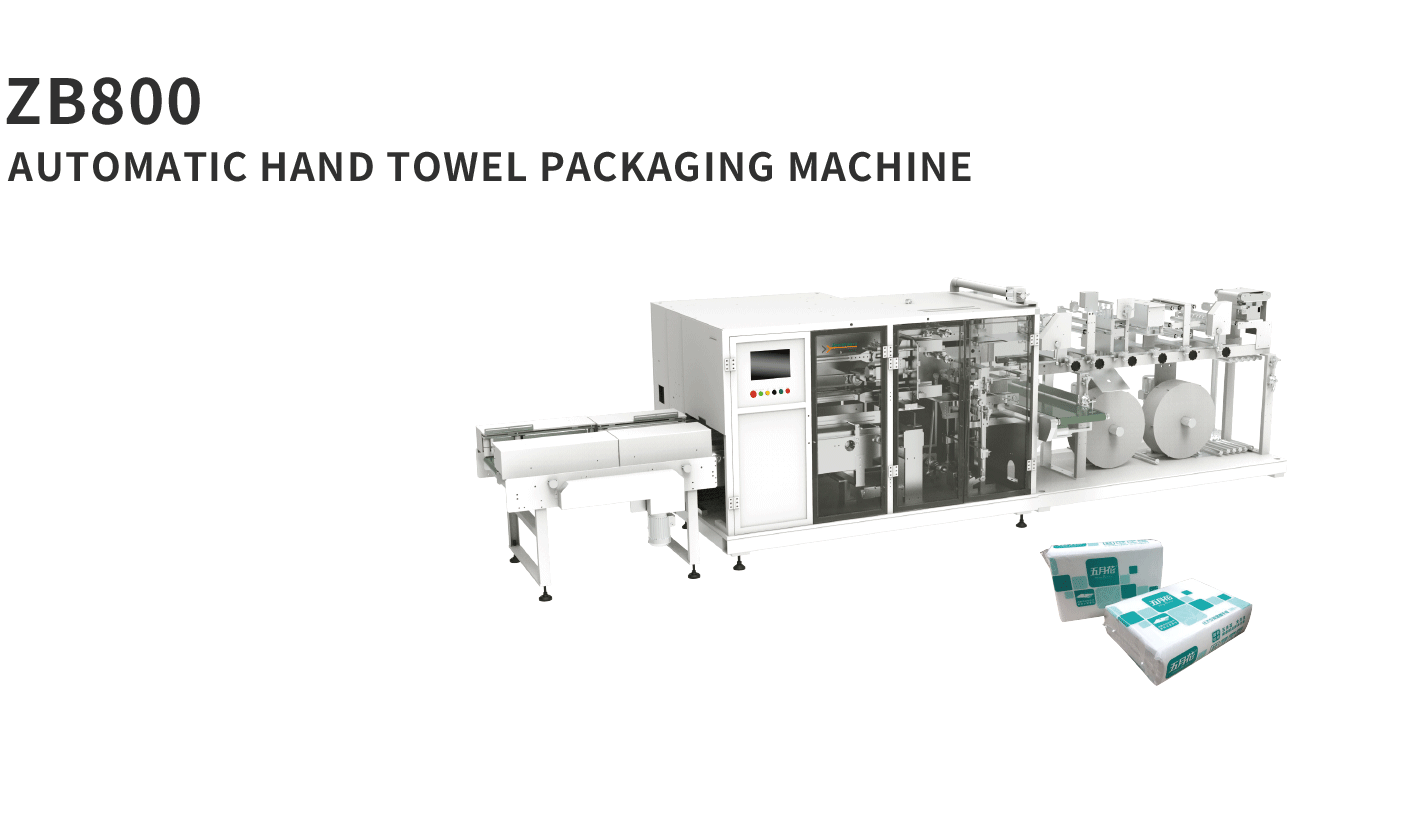

Model：ZB800

Film rolll：Maximum diameter：φ600 mm        Film paper core：φ76-80mm

Film thicknessl：0.06mm—0.09mm

Film materiall：PE Double-sided heat sealing film (recommended), various heat sealing composite film.

Speedl：30-45 packs/min(Depending on the product size)

Powerl：Motor power：11 Kw     Main heating power：3.0Kw

Specificationsl：L：100 mm -250 mm      W：100 mm -230 mm       H：70mm -100 mm

Machine weightl：3000KG

Pass ratel：≥97%

Overall dimensionsl：7000mm×1000mm×2200mm(L×W×H)

Power typel：380V (3 Phase 4 line system)

Compressed air amountl：6kg/cm2       0.45m3/min

Noisel：≤75（db）

Auto feeding conveyor1. Use frequency conversion motor into the feeding mechanism with the servo motor to stably separate eachproduct;2, When the push mechanism enters, the machine will not take bags or waste packaging bags;3、The material conveying mechanism has the over-high and over-long automatic detection functionStandard machine:1 The main machine adopts 10-axis Mitsubishi JE series servo independent drive, fast response speed,accurate action;2, Control system is equipped with Mitsubishi L series PLC, sports CPU combined with Mitsubishi JEhigh-resolution servo, high-speed operation performance is more stable;3, Large LCD touch screen display and parameters setting, convenient to change the specifications, the mainadjustment parts are marked with the scale, such as the envelope envelope position;4. The bag making and the final seal are controlled by the heating tube of the Delta temperature controlmodule system, and the stability deviation shall ensure that the bag making of each bag can be completedduring the high-speed operation;5. Pneumatic parts adopt Japanese SMC brand, and sports parts adopt Japanese NSK\THK brand;6, Color mark sensor adopt SICK
